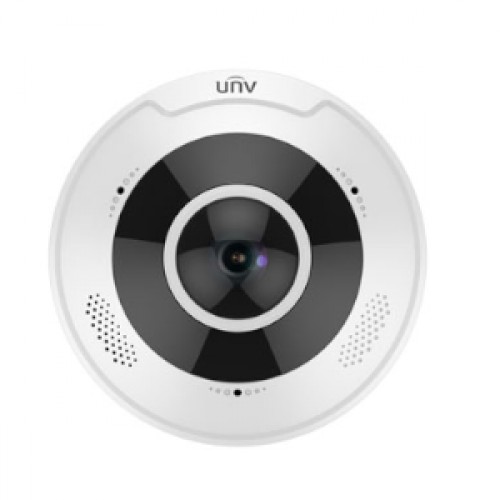

| IPC868ER-VF18-B | |||||
| Camera | |||||
| Image sensor | 1/1.7", 12.0 megapixel, progressive scan, CMOS | ||||
| Lens | 1.8mm@F2.4 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 1.8 | 43.8 | 17.5 | 8.8 | 4.4 | |
| Angle of View | 360° | ||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.05Lux (F2.4, AGC ON) 0Lux with IR |
||||
| Day / Night | IR-cut filter for day & night function | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N Ratio | >52dB | ||||
| IR Range | Up to 10m (33ft) | ||||
| Defog | Digital Defog | ||||
| WDR | DWDR | ||||
| Video | |||||
| Compression | Ultra265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Fisheye Frame Rate | Main Stream: 15fps (4000*3000, 3000*3000); 25fps (2560*2560); Sub Stream: 15fps (2000*1500, 2000*2000); 25fps (2000*2000); Third Stream: 15fps (720*576, 320*288) |
||||
| Panorama | 25fps (3000*2000); 15fps (4000*3000, 3000*2000, 3000*1500) |
||||
| Frame Rate PTZ | 15fps (1920*1080) | ||||
| ROI | Up to 8 areas | ||||
| BLC | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Smart | |||||
| Behavior Detection | Intrusion, cross line, motion detection | ||||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||||
| cross line | Cross a pre-defined virtual line | ||||
| motion detection | Moving within a pre-defined virtual region | ||||
| Recognition | Audio detection | ||||
| Statistical Analysis | heat map | ||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Live View Display | |||||
| Mount Type | Support table, wall, and ceiling | ||||
| Display Mode | Support 10 display modes in total (including display modes of mount types and decoding modes): Display Mode: Original Image, Fisheye+4PTZ, Panoramic Preview Mode: Original Image, 360° Panoramic+1PTZ, 180° Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360° Panoramic+6PTZ, Fisheye+8PTZ |
||||
| Interface | |||||
| Audio I/O | Audio interface | ||||
| Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 2/1 | ||||
| Multiple Alarm linkage editable | |||||
| Built-in Mic | Supported | ||||
| Built-in Speaker | Supported | ||||
| Serial | 1 channel RS485 interface | ||||
| Network | 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet | ||||
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 9.6W | |||||
| Dimensions (Ø x H) | Φ149 x 51.5mm (Φ5.87” x 2.0”) | ||||
| Weight | 0.5kg (1.1lb) | ||||
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH | ||||
| Ingress Protection | IP66 | ||||
| Vandal Resistant | IK10 | ||||
| Reset Button | Supported | ||||
