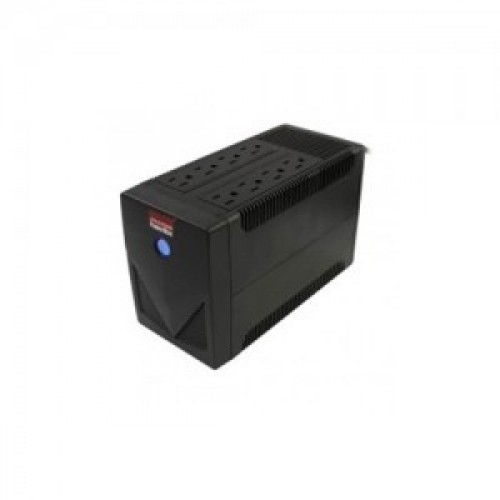

650VA line interactive UPS
• Controlled by a technologically advanced
microprocessor guaranteeing high reliability
• DC cold start function enables UPS to be
started without AC power supplied
• UPS will shut down upon battery low; UPS
will restart automatically upon AC recovery
(Auto-restart)
• Equipped with 2-steps boost & 1-step buck AVR
to stabilize output voltage
• Constant current, constant voltage battery
charger (CC/CV Battery Charger)
• UPS will charge itself even though power switch
is off (Off mode charging)
• Over / Under voltage protection
(UPS will go to battery mode)
• Generator compatible
|
MODEL |
MAX-650A |
|
CAPACITY |
650 VA / 360 W |
|
INPUT |
|
|
Voltage |
110 / 115 / 120 VAC or 220V / 230 / 240 VAC |
|
Voltage Range |
-30% +25% |
|
Frequency |
50 Hz or 60 Hz (Auto-Sensing) |
|
OUTPUT |
|
|
Voltage Regulation |
AC mode / Battery normal : 110 / 115 / 120 VAC or 220 / 230 / 240 VAC + / - 10% |
|
Frequency |
AC mode: 47-53 Hz for 50 Hz or 57-63 Hz for 60 Hz, Battery mode: 50 Hz or 60 Hz + / - 1 Hz |
|
Waveform |
Simulated Sinewave |
|
Transfer Time |
< 6ms(Typical) |
|
Outlet |
Nema 5-15R or Universal Nema * 4pcs with back-up + 4pcs surge only |
|
BATTERY |
|
|
Voltage |
12 VDC |
|
Size |
12 V / 4.5 AH*1pc |
|
Recharge Time |
5 hours to 90% after complete discharge |
|
Safety Protection |
Over charge & over discharge protection |
|
Advanced Battery Management |
Yes |
|
DISPLAY |
|
|
LED Status Indicators |
AC normal: Blue; Battery back-up: Red |
|
AUDIBLE ALARM |
|
|
Battery Mode |
Two short tones every 8 seconds |
|
Low Battery |
Four short tones every second |
|
Overload |
Red LED: Flashing, Buzzer: Beeping continuously |
|
Fault |
Beeping continuously |
